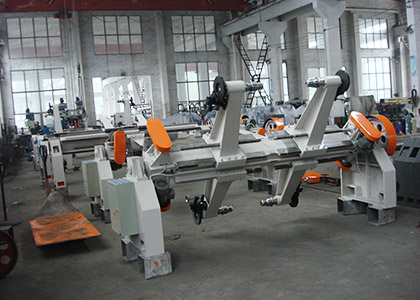

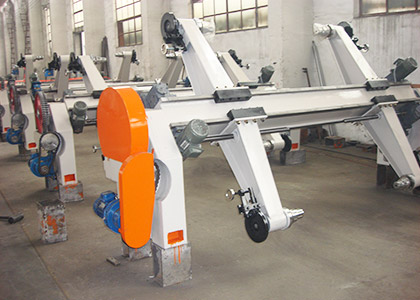

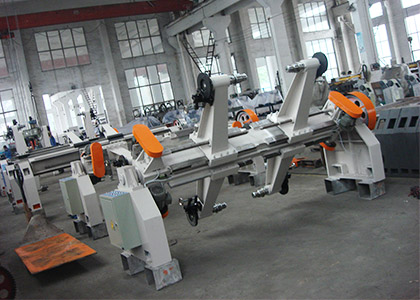

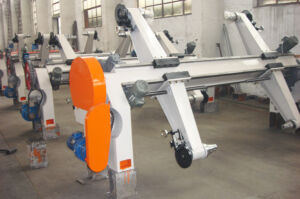

ZJ-F series electric shaft-less mill roll stand
Machine Structure
1.Symmetrical structure can also install two bundles of paper at the same time，Paper can be used for non-stop for a job；Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.
2.each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car；paper guide the use of channel 14 and the guide post weld，paper car adopt 10mmwelded stell，the length of track is 6000mm.

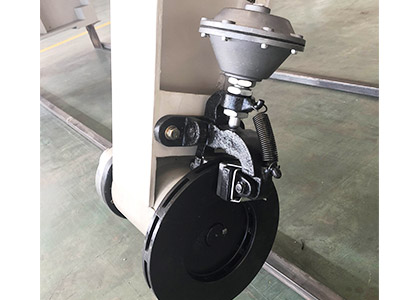

3.penumatic discs brake.

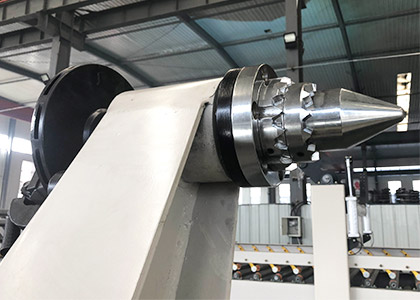

4.electric elements centralized control the electric elements，toothed chuck.
Main technical parameter
1.machine size：1200 -2200mm minimum work size：600mm
2.the diameter of paper jams：maximum：￠1500mm minimum：￠400mm
3.Unilateral maximum load weight：maximum 2000Kg
4.Powered motor parameter：
1).Paper jams motor550W×4set 380V 50HZ short（S2）working standard
2). lift motor 1.5KW 380V 50HZ short（S2）working standard
