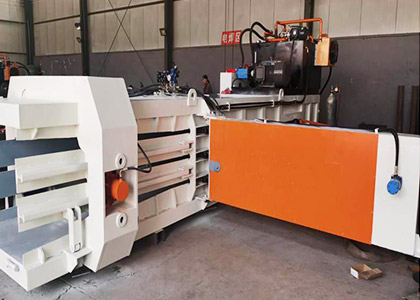

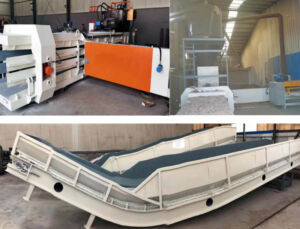

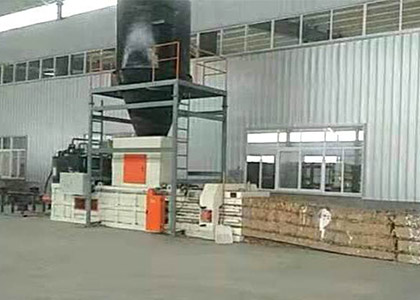

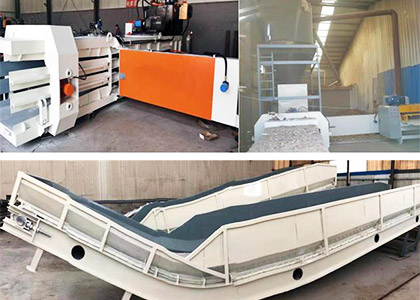

YN-WA Series Hydraulic Automatic Baler Machine
MAIN SPECIFICATION
1. Automatic compress, automatic wire binding, continuous bale, suitable for any place installation, loose material waste by compression bale, easy storage and stacking, prevent fire hazards, exceed the national permitted load weight to reduce transport costs
2. Continuous packing, fast packing speed, pack length can set without limitation. high packing compression density, stable action, low failure rate, improve operating speed, save labor costs, save energy consumption, can meet all customer output demand
3. Hydraulic motor chain drive, hook type binding device, fast speed and low failure rate and easy to clean and maintain
4.Computer automatic control: one-button start/automatic compress/no human control, France Schneider (industrial computer-PLC),Taiwan Weinview (7-inch touch screen) automatic man-machine interface (automatic control) to save labor costs
5. Korea Autonics material monitoring system, accurate and stable material detection control which can avoid the trapezoidal packing block, making the packing block solid, smooth and beautiful
6. Electrical safety control: DC24V isolated power supply/(to ensure personal safety)
Main power supply over-flow load protection/lack phase, open phase protection/system over-pressure protection alarm stop/conveyor overload over-current protection/automatic detection/alarm reminder/fault prompt
7. install the corrugated sawtooth double shear dovtail knife, improve shear efficiency, extend the service life of the blade
8. Unique (barrier-free) feeding box, feeding more smooth, no stuck phenomenon
9. International standard circuit diagram, electrical wiring clearly marked in detail, components control parts marked, improve maintenance efficiency
10. Hull welding technology is adopted to ensure welding strength and ensure more stable and reliable equipment
11. Wide range of applications: suitable for waste paper, waste carton, straw, plastic bottles , thin aluminum sheets and other soft loose material waste compression, to save transport costs
12. No need special site foundation requirements, simple installation and easy construction
MAIN PARAMETER
| MODEL | WA-120 TYPE HYDRAULIC AUTOMATIC BALER MACHINE | ||
| Machine size | Hydraulic control | ||
| Pack size | L800~1800mm*W1100mm*H850mm | Oil pump | High-low pressure combination High flow double shaft oil pump |
| Feed mouth size |
L1700mm*W1040mm*H1500~3000mm | Oil control | High-low pressure automatic variable speed valve control system |
| baling chamber size | L2800mm*W1100mm*H850mm | Hydraulic control |
Cartridge valve integration Forged valve body control system |
| Main machine size | L8500*(W2024~4109)*H1114+1500mm | Solenoid valve control | DC24V low voltage (ensure personal safety) |
| Install size | L13m*W4.2m*H6.5m | Hydraulic oil capacity | 46#/32# Antiwear hydraulic oil /800L |
| Power system | Electric auto control system | ||
| Main power | YX3-4 series 30Kw/30Hp |
Compress control | One button start/auto compress/no need worker control |
| Main oil cylinder | Φ245mm/φ200mm/φ150mm-2500mm | Operate control | Touch screen control |
| Main oil cylinder thrust | 80T/780kn | PLC | France Schneider |
| Work pressure | 18mpa | Touch screen | Taiwan Weinview 7 inch touch screen |
| Main oil pump | VQ series double pumps/35/25 | Material monitoring | Korea Autonics l monitoring system |
| Main oil pump | high pressure pumpx1 set Low pressure pumpx1 set |
power | AC380/50hz/3 phase |
| machine performance | Bundle wire parameter | ||
| Compress density | 400~500/m³ | Bundle wire No. | 3 |
| Compress speed | Forward 15.7s/back 5.652s | Bundle material | annealing Iron wire Φ3.0~3.2mm |
| Compress capacity | theoretical value： feed 1m³=40~60kg/3~6T hr |
Bundle control | Automatic winding Bundle system |
| Automatic clamping system | Cooling control (independent cooling system) |
||
| Clamping air cylinder | Φ194mmφ160mmφ110mm-150mm*2 set | Motor power | YX3-4series 5.5Kw |
| Control type | Left and right position Floating clamping (Hydraulic oil cylinder) |
Oil pump | YUKEN /PV2R SERIES |
| Auto control | According the density pressure Automatic control |
cooler | Dongxu/ wind cooler Jinyu/ water cooler |
| model | FW-ZQFL200 type cyclone separator for paper and air | ||
| Size | Φ2000mm*H5000mm | Install with | Frame and flange plate |
| Channel Number | 4 channel | Separator power |
37KW |
| model | FW-PLJ200 type Climbing machine | ||
| Size | 1600×960 | power | 5.5KW |
