YN-SPF series Full hydraulic semi-automatic pre-feeder machine

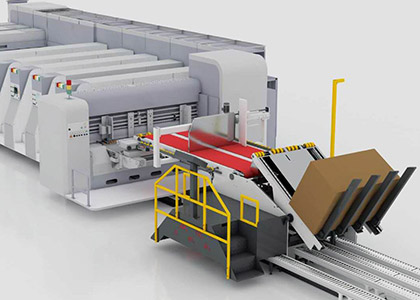

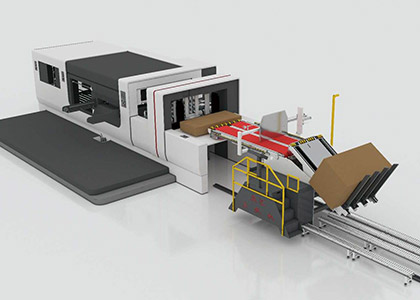

YN-PF series semi-automatic pre-feeder machine (Installed at Top printer or bottom printer machine), this equipment is mainly used for the high efficiency feeding the medium and small corrugated board
1. Suitable for the printing machine which max cardboard width 900mm or 1200mm
2. machine speed 200 pieces-300 sheets/minute
3. Single person operation: lower labor cost compare to the traditional two person cardboard lifting.
4. Production pre-arrangement: At the production tail of current order, pre-set and put in advance the next order cardboard size. with high personnel mobility.
5. Intelligent cardboard feeding system: Match up the printing machine production speed, intelligently adjust the cardboard feeding speed.
6. One-key setting: size setting, one-key ordering and stacking height setting of the feed unit according to production conditions.
7. diversified cardboard placement method. according to the cardboard size, select the single cardboard placement method or the multiple cardboard placement method to feed the cardboard.
8. Ergonomic design: the height of the stairs can be matched with the best Angle of cardboard lifting position, so that the operator can operate easily and reduce the labor force.

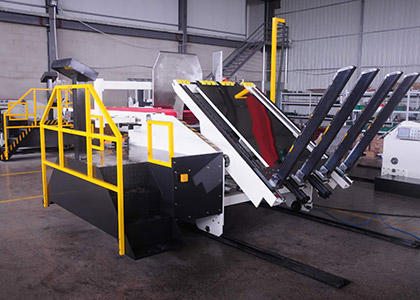

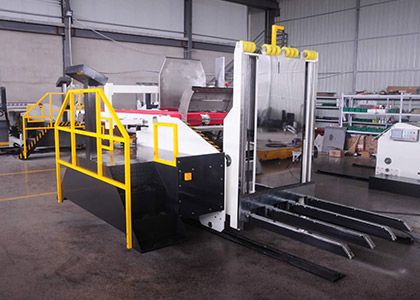

9. The fork mechanism : can choose automatic cardboard feeding function to cooperate with the front logistics.

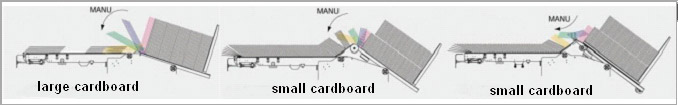

10. Large cardboard state: can flip the cardboard to feed stack by stack;
Small cardboard state: can be more stack up-down feeding
Main parameter
Max cardboard: 1200×2400
Min cardboard：260ⅹ500mm
Cardboard stack height：2000mm
Max stack height：2000kg
Cardboard up-down method：hydraulic up-down
Fork turn power：hydraulic
Horizontal transmission table lifting power: motor drive
Conveyor belt power: reduction motor (equipped with independent frequency conversion motor and independent reduction motor to ensure smooth transmission)
Electric set the side baffle and front baffle, pneumatic beat alignment, side baffle digital adjustment pneumatic extension.
Machine movement: the machine itself can move back and forth. When the printing machine is separated, the machine automatically moves back and rises.
keep the cardboard same height during work, lifting fork automatically push cardboard up, one key to return.
The conveyor belt can automatically control the start and stop of cardboard feeding according to the height of the printer feeding table
