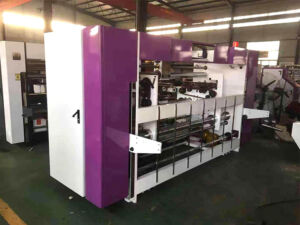

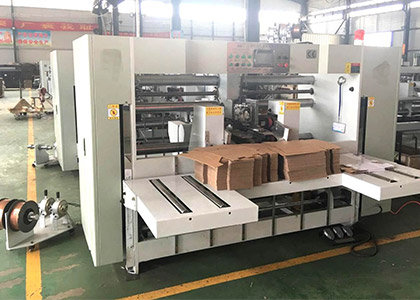

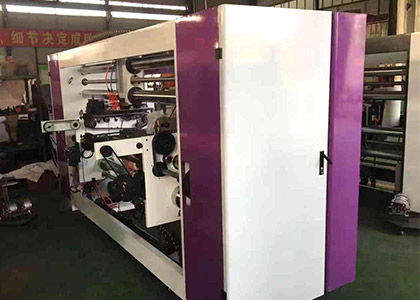

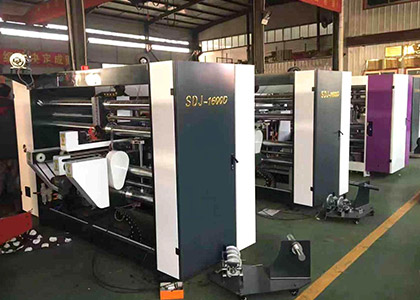

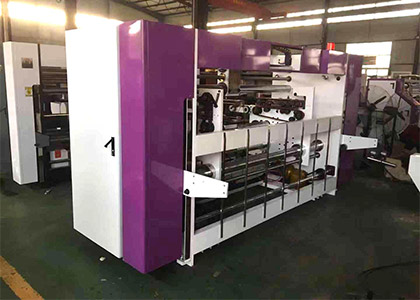

YN-SDJ-D small 2 pieces semi-auto stitching machine (4 servo motor control)

YN-SDJ-D small 2 pieces semi-auto stitching machine (4 servo motor control)

MAIN PURCHASED PART

MAIN FUNCTION

1. mitsubishi four servo drive, accuracy, reduce the mechanical transmission part which can reduce the failure rate of machinery.
2.The whole control system adopts omron PLC control system.
3. All contactors in the control box we use germany Siemens brand
4. Relay circuit breaker adopts French schneider brand, photoelectric and proximity switch adopts Japanese omron brand
5. bottom die blade is made of Japanese tungsten steel (wear resistant),The whole nail head is made of special steel, CNC precision machining.
6. changing carton size and adjusting carton stitching distance can be completed in only one minute, greatly saving time and convenient operation

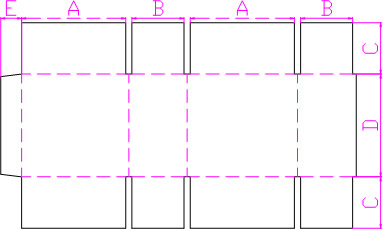

7. carton with lid & carton without lid can be nailed (if stitch carton without lid, please specify when order machinery)
8. The machine with automatic counting function at the back side, the number of finished carton can be stacked up to the conveyor according to the set number (1-99), which is convenient for packaging and binding
9. mechanical speed :600 nails/min
10. one machine with dual-purpose: single-piece carton stitch, two-piece carton stitch, irregular carton stitch.
11. The machine Can nail reinforcing nails, single nails, double row nails, one time finish
12. Feeding unit automatically count
13. Suitable for medium and larger box, fast and save labor
14. Touch screen computerized set the stitching distance, the stitching distance is 30-150mm arbitrarily adjustable;
15. Automatic wire feeding system, load 20KG, save time.
16. touch screen computerized adjust the gap of the 3/5/7 layer carton thickness, fast and accurate.
17. The machine adopts four servo motors (two stitch head motors and two feeding motors).
18. The whole machine electrical isolation voltage transformer protection device, better protection of the whole computer electrical service life.
19. Touch screen computer adjust all sizes, automatically change the box size within 1 minute, fast and accurate, and can store 1000 orders.
20. This four servo boxstitching machine has applied for the national patent, patent number: 201320093086.8
21. This machine touc screen display fault instructions.

MACHINE PARAMETER
