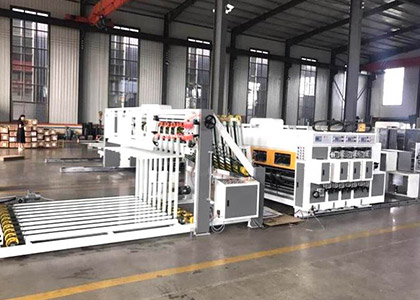

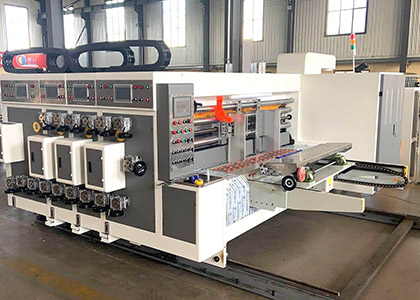

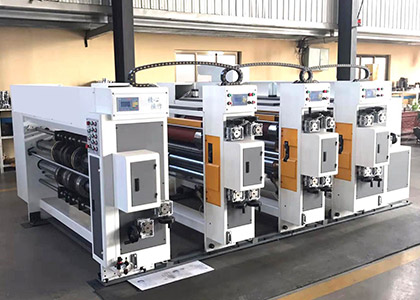

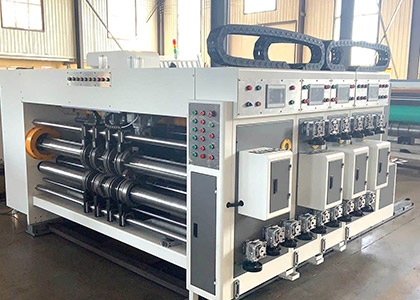

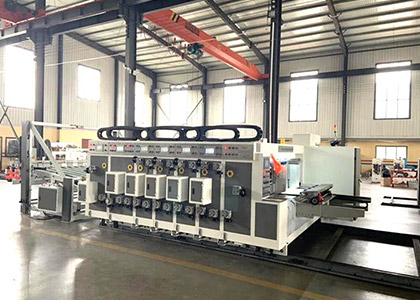

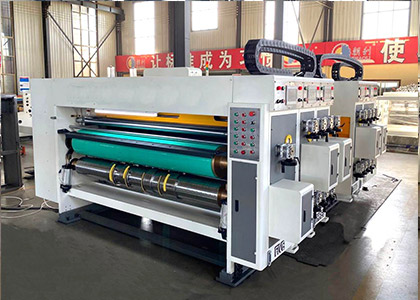

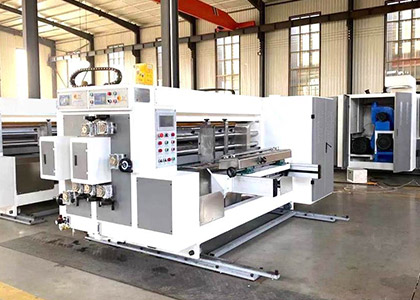

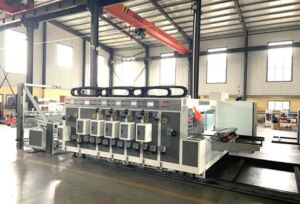

YN-S series automatic flexo printer slotter die cutter machine
(small box machine)
MAIN PARAMETER
| Model | YN-S-617 | YN-S-823 |
| Max feeding size (L x W) | 600mmX1700mm | 800mmX1300mm |
| Min feeding size (L * W) | 180mmX450mm | 210mmX600mm |
| Width of printing roller | 1600mm | 2200mm |
| Speed | 100—120 pieces/min | 0-200 pieces /minute |
| Min slotting | 150X50X150X50MM | 200X60X200X60mm |
| 80X80X80X80MM | 120X120X120X120MM |
MAIN SPECIFICATION
1. Lead edge feeder with 3 line feeding roller, electric adjust the side baffle movement, pneumatic flapping. 4 shaft Feeding roller adopt rubber roller and steel embossing roller , The paperboard feeding shaft pressure is adjusted by eccentric wheel adjustment, and the left and right eccentric wheels pressure level adjusted synchronously
2. feeding unit with two side baffle and back baffle, feeding stable.
3. The slotting cutter wheel is made of high quality cast iron. The slotting blade adopts Sawtooth arc semicircle blade.
The slitter knife can slit the two side edge of the cardboard.
4. After slotting, corner cutting, creasing and edge splitting, the paperboard delivery out by the transfer shaft of the equipment. The machine with pre-creaser wheel and creaser wheel, so as to prevent the paperboard from bursting.
5. This machine uses the electric planetary gear phase adjustment to adjust the paperboard size, which can be directly adjusted without stopping the machine.
6. Printing plate roller pressure adjustment adopt high-precision bearing cross slider for non-clearance adjust, so that the printing pressure can reach the optimal printing state; gear clearance is closely coordinated for transmission.
7. touch screen adjust the printer roller 360° phase movement (both in run or stop), The mechanical mechanism adopts planetary gear mechanism
8. Diaphragm pump for the ink supply system, pneumatic lift printing plate and equipped with automatic ink distributing system, The ink barrel use the stainless steel, when stop the machine, the ink can be automatic circulation movement for avoid drying, The ink back tube adopt 1.2 inch PVC pipe, tube wall is smooth, prevent sticking ink.
9. The slotting head transverse adjustment mechanism is 8 screw rod type. Motorized movement.
10.Electric digital 360 adjustment of slotting phase. (operation and stop can be adjusted).
11.Die cutting phase electric digital 360 adjustment. (operation and stop can be adjusted)
12. The bottom die-cutting roller can install with slotting part, which is convenient for ordinary carton without using rotary wood mold. slotting fine without burr.
