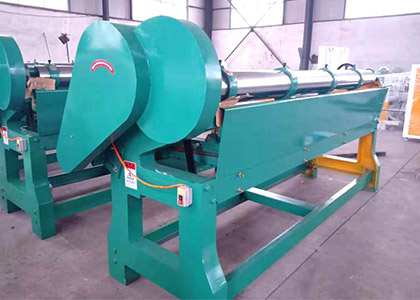

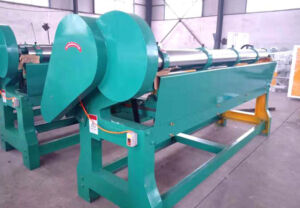

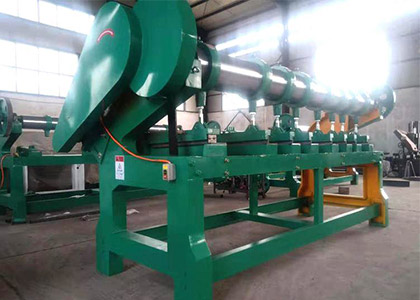

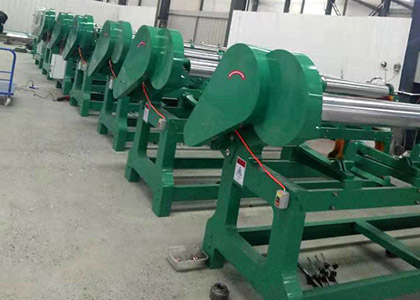

YN-ESC series Eccentric Slotter Machine
1. It is used to produce single, double or Multi layer corrugated carton.
2. It has compact structure, convenient adjustment.
3. The slotting blade is designed as sawtooth, saving effort and durable.
4. The machine with rack, easy adjustment slotting size.
This equipment is the necessary equipment for the carton sample maker and the production of small batch cartons. The machine has the advantages of quick adjustment, beautiful slotting and so on.
The machine includes body, transmission, table, motor four major parts.
The frame is whole cast iron, the structure is stable and reliable, to ensure smooth operation during operation.
| Model | ESC-2500 | ESC-300 |
| paper width( mm) | 2400 | 2900 |
| slot size (mm) | 8×340 | 8×430 |
| slot knives no.(mm) | 3 | 3 |
| cut corner size(mm)） | 0-60×430 | 0-60×430 |
| corner cut knives | 1 | 1 |
| cut speed ( times/min)） | 30 | 30 |
| power | 2.2 | 2.2 |
| weight kg | 2000 | 2300 |
