MAIN PARAMETER
| Model | 920 | 1224 | 1228 | 1424 | 1428 | 1624 | 1628 | |
| Max. design speed(pcs/min) | 250 | 200 | 200 | 160 | 160 | 150 | 150 | |
| Working speed (pcs/min) | 0-200 | 0-150 | 0-150 | 0-140 | 0-140 | 0-130 | 0-130 | |
| Max feeding size (mm) | 900×2000 | 1200×2400 | 1200×2800 | 1400×2400 | 1400×2800 | 1600×2400 | 1600×2800 | |
| Max printing size(mm) | 850×2000 | 1150×2200 | 1150×2600 | 1350×2200 | 1350×2600 | 1550×2200 | 1550×2600 | |
| Min. feeding size (mm) | 280×580 | 360×700 | 360×700 | 380×700 | 380×700 | 420×700 | 420×700 | |
| Min slot size | Reverse | 235×65 | 265×100 | 265×100 | 265×100 | 265×100 | 265×100 | 265×100 |
| Positive | 135×135 | 165×165 | 165×165 | 165×165 | 165×165 | 165×165 | 165×165 | |
| Standard printing plate thickness | 7.2mm | 7.2mm | 7.2mm | 7.2mm | 7.2mm | 7.2mm | 7.2mm | |
(Size can be customized according to customer requirements)
MAIN FUNCTION

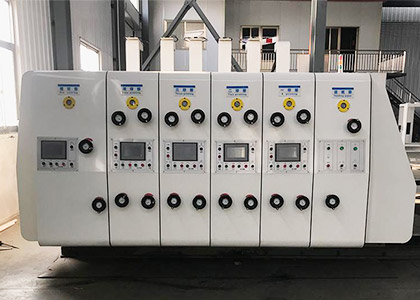

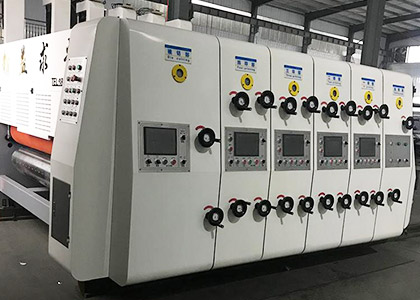

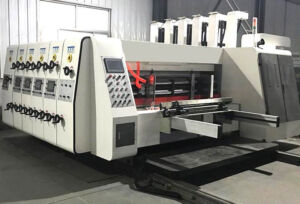

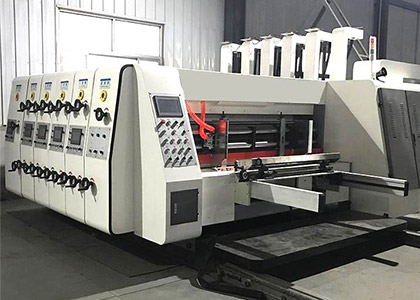

YN-B series automatic corrugated carton box “flexo printer slotter die cutter “ include feeding unit, print unit, slotting, die cutting unit, one time finishing the carton box printing, cutting.
The Printer unit touch screen control phase movement. With hanging palte. save 999 order memory.
The slotting unit . Carton box height computerized setting. Box length and width motorized setting. The machine slotting unit can do the regular standard box, One time it can do slotting , creasing , slitting and flap cutting.
The die cutting unit can do the abnormal shape type box by install the die tools. Difference die tools can produce difference type carton box. One time it also can produce 2 or 3 or more carton box.
| Machine Unit | Main specification |
| Feeder unit | 1. Lead edge feeder, feeding air pressure is adjustable 2. dust suction brush 3. motorized adjust the side and back cardboard hold plate |

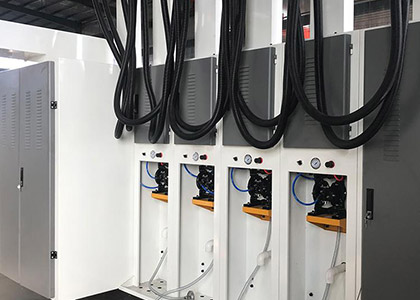

| Print unit | 1. touch screen control printer roller phase movement 2. hanging plate device. Easy to put printing palte 3. have the 0 line, save printing memory 4. ink automatic circulation. Lack ink alarm device |
| Slotter unit | 1. touch screen control box height 2. motorized control box length and width. |
| Die cutter unit | 1. Die-cutting roll pneumatic self-locking device 2. speed difference compensation mechanism 3. rubber grinding knife 4. Taiwan or Italy die cutter rubber |
| Stacker unit | 1. With Up Down Safety Device 2. Plc Control, Belt Frequency Conversion Control 3. back holder with side square plate |
