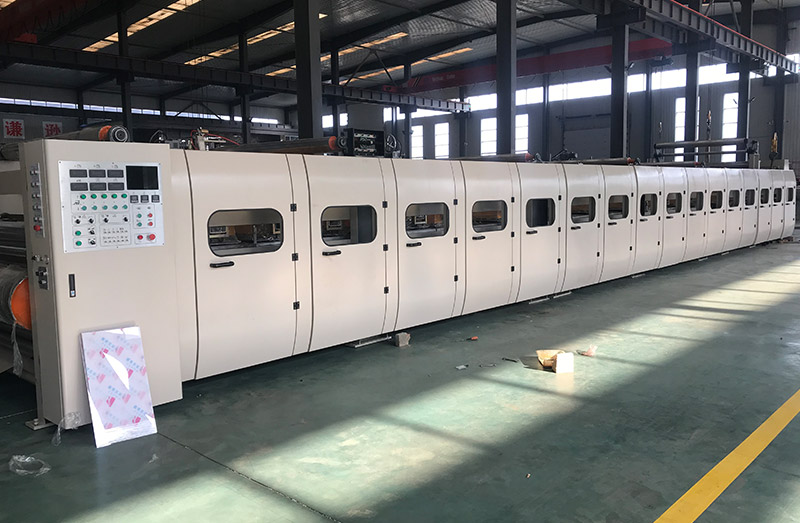

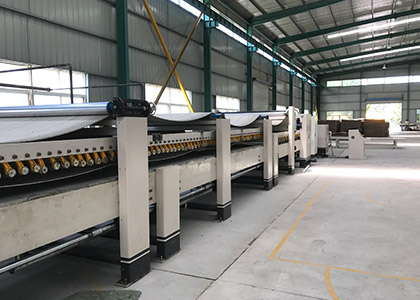

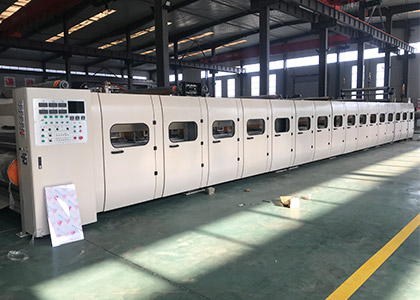

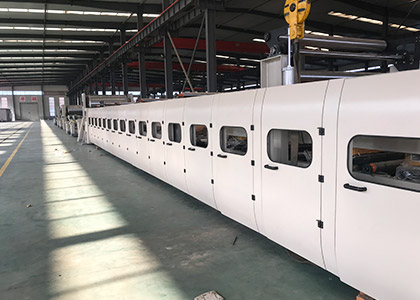

SM Series Double Facer Machine

SM series double facer machine

Main specification

1. Heating plate surface by grinding treatment and chrome plate，hot plate width 600mm，heating plate quantity based on the corrugator line speed.
2. heating plate made by container board, in accordance with the national standard of pressure container, with the inspection pressure certificate.
3. Hot plate inside steam flow design with multi-s type structure. Steam, water separation function significantly improves the utilization of
4. upper belt left and right correction adjustment adopt pneumatic automatic correction .
5. Thermal pipe heating plate temperature control points three sections with temperature display.
6. up cotton belt with double cylinder S cotton belt tensioning device。
7. lower belt adopt pneumatic tensioning, pneumatic automatic correction.
8. Drive roller coated with attached wear-resistant rubber ，showed a herringbone structure，With a high, ensure smooth cardboard output.
9. Main drive motor for frequency conversion motor，low-speed torque，wide speed range ,reliable, and easy maintenance.

Main parameter
