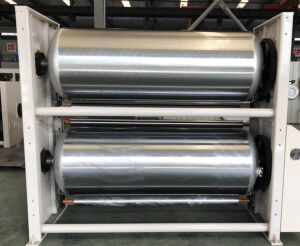

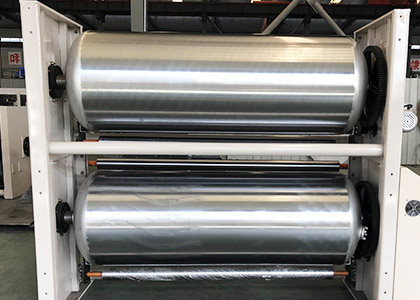

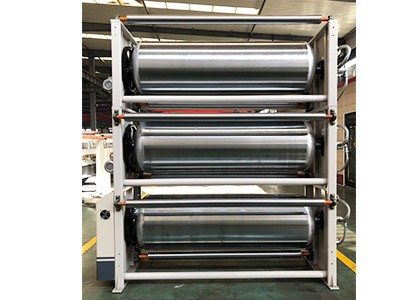

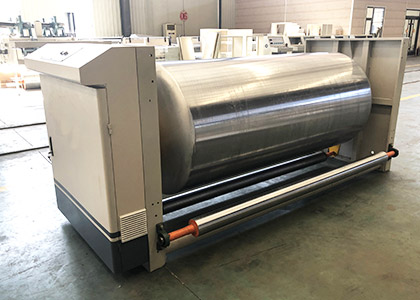

PH Series single/double/triplex pre-heater machine
Main function
This machine is used for heating liner and the corrugated paper, and dry to control temperature and humidity of liner and the corrugated paper
Main Function
1. Working width: 1200-2500mm
2. Diameter of heating cylinder: 400mm /600mm /900mm/1000mm /1100mm
3. Heating cylinder adopts professional manufacturer product, passed the nation pressure vessel text.
4. Wrap roller:2sets, one fix roller, and other one floating roller.
5. Motorized wrap angle can be suit for different speed.
6. Adopt worm gear reducer 1set, gear drive type.
7. Electric motor driving the pre-heater roller rotary when running machine.
