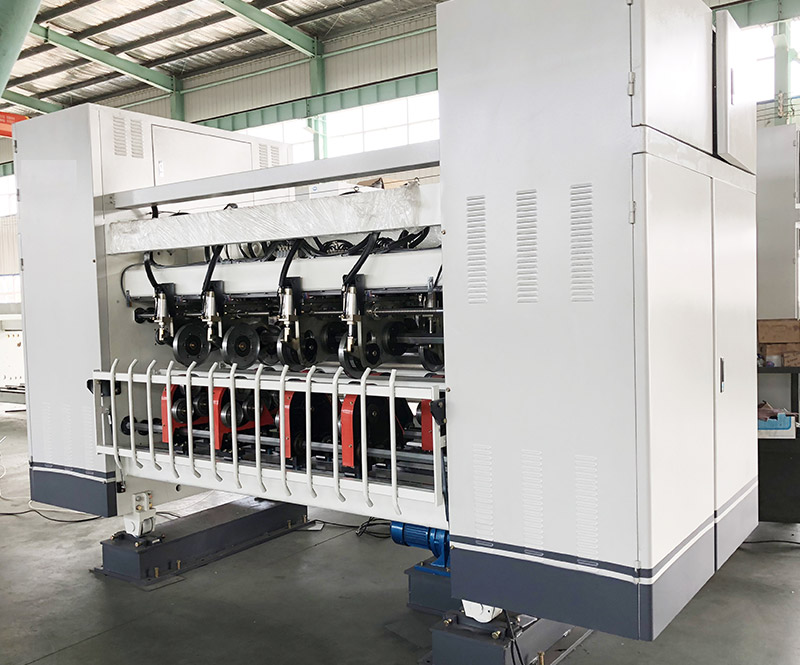

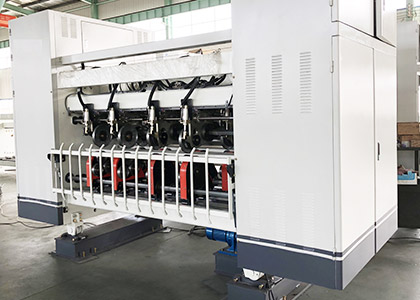

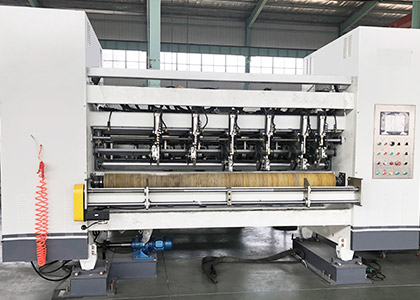

NC Computerized thin blade slitter scorer machine
Main specification
1. Design speed:250m/min.Width:1400mm-2500mm
2. Memory of 999 order, non-stop change or manual change
3.Order change quickly, within 3 to 8 seconds. Application of two machines can realize non speed reduction change
4. Automatic synchronize with the corrugated line and Also can get in line with manufacture management system. High compatibility.
5. High quality touch screen and PLC equipped composing the CNC system.
6. There are three types of scores: concave-convex(single wall),concave convex(double wall),computerized choose it.

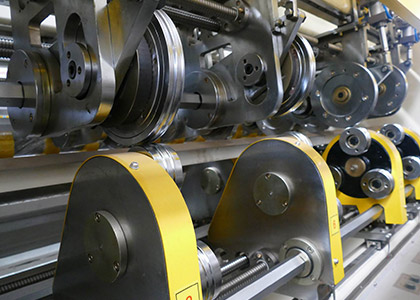

7. Thin tungsten steel alloy blade, sharp and long life of over 8 million meters.
8. Computer controlled auto grinding and manual grinding also applicable. Alternative grinding the blade when slitting the board, it can increase efficiency.
9. Imported synchronous belt applied for conveying with higher precision, longer life and lower noise.
Main paramter
| Model | 1800 | 2200 | 2500 |
| Machine dimension (mm) | 3800×2100×2340 | 4200×2100×2340 | 4500×2100×2340 |
| Power (KW) | 24 | 24 | 24 |
| Max slitting width (mm) | 1800 | 2200 | 2500 |
| Min slitting width (mm) | 140 | ||
| Min scoring width (mm) | 0（140） | ||
| Scoring height (mm) | 0-12 | ||
| Blade (mm) | φ260×158×1.3 | ||
| Blade & Scoring | 4/6 or 5/8 | ||
