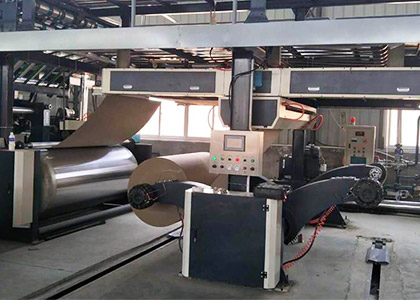

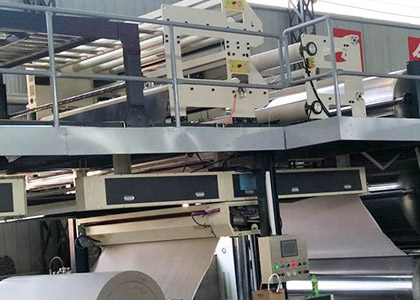

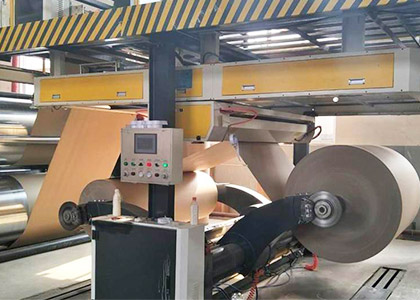

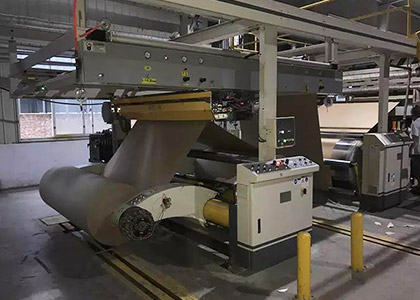

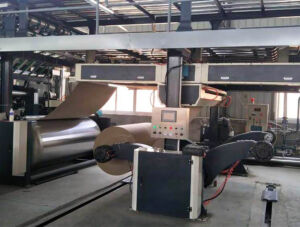

JF-FA Series Auto Splicer Machine

JF-FA Series auto splicer machine

Main technical parameter

1.Paper connect speed: 0-150m/minunte (according the paper quality)
2.Paper connect time: about 1 second
3.Working speed: 0-200m/minute
4.Suitable for paper weight: 90-320g/m²
5.Max paper mill diameter: 1500mm
6.Working pressure: 0.6-0.9MPA
7.Double face adhesive tape width: 30mm

Main Function

1.PLC control system, human-computer interface
2.paper connect mission success rate more than 99%
3.Adopt magnetic particle clutch automatic control
4.Buffer roller chain drive
5.zero paper waste, only 30mm width connect for two paper
6.paper stick and Tooth incision Integral structure
