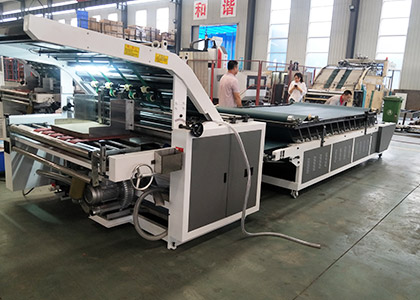

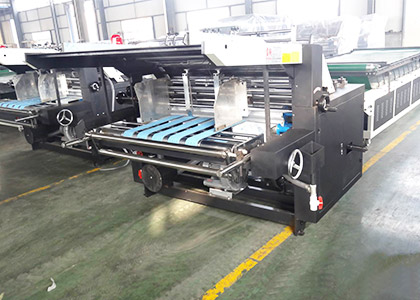

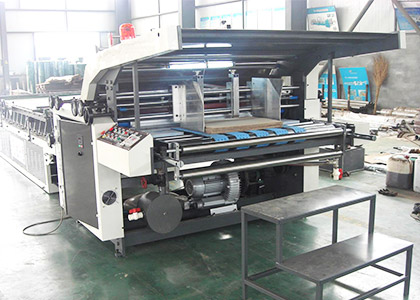

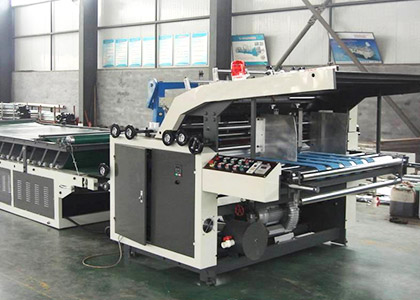

BZJ-Q2 series semi-auto flute laminator machine
MACHINE DESCRIPTION
1. The machine is easy to clean by lifting type bridge board. Intermittent water cycle cleaning system, easy clean
2. Automatic vacuum feed bottom board, face paper manually feed in front of the machine, easier to feed, positioning more accurate
3. Elastic front rule position, the bottom board does not go fast, and the bottom board and the top face paper laminating position can adjust.
4. The machine is suitable for 150-450gsm paper, A B C D E F wave and three and five layers cardboard (the maximum thickness is less than 10mm)
5. Intelligent control the conveyor unit, power saving and control paper distance
6. Adopt high precision glue control device to save glue
MACHINE TECHNICAL PARAMETER
| Model | BZJ-1300Q-2 | BZJ-1450Q-2 | BZJ-1600Q-2 |
| Max sheet size | 1300×1300mm | 1450×1300mm | 1600×1300mm |
| Min sheet size | 320×450mm | 320×450mm | 320×450mm |
| Total power | 7kw | 7kw | 7kw |
| Speed | 0-90m/min | 0-90m/min | 0-90m/min |
| Weight | 3.0T | 3.1T | 3.2T |
| Overall Dimensions | 8800×2200×1700mm | 8800×2350×1700mm | 8800×2500×1700mm |
MAIN COMPONENTS BRAND
| gear motor | Jiangsu |
| variable frequency motor | Mengniu |
| bearing | Harbin |
| Vortex pump | ZHEJIANG |
| frequency converter | TADEI |
| Rubber pump | Shanghai |
| low-voltage power supply | Omron |
| Flattening conveyor belt | Italy |
| Chain | Japan |
| photoelectric | Shanghai |
| Film based suction belt | Japan |
| contactor | Zhengtai |
| Electromagnetic clutch | Zhejiang |
| Level relay | CKC |
| Touch screen | Shenzhen |
| PLC | Japan panasonic |
| Relay | Zhengtai |
