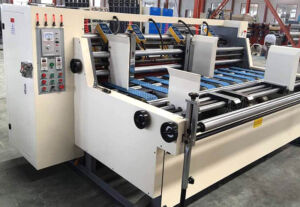

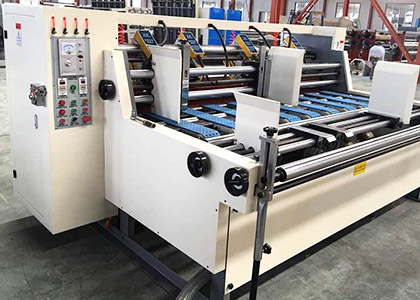

BFY-ZDS series auto feeder thin blade slitter scorer machine
MAIN FUNCTION
Feeding section
1.The cardboard size is adjusted by screw rod adjusting mechanism, one operator, simple quickly.
2.The convenience adjustable yards paper machine can better adapt to all kinds of cardboard and the paper-feeding is stable accurately.
3.The belt which convery cardboard adopts the high quality rubber seamless belts, high friction, long life , less noise , easy maintenance and high economic benefits.
4.The double tension control is convenient and reliable.
5.The shaft adopts pattern roller, and it can increase the friction between paper belt and itself to ensure cardboard conveying is smoothly and quickly.

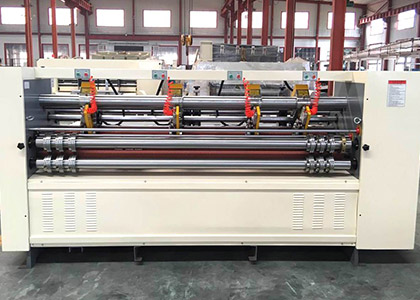

Slitting Part
1.Adopt two roll near-range feeding (front and back rubber roll distance 325mm), then scoring, easy to adjustment. It could be do slitting only without scoring, avoid error when scoring.
2.Adopt electric adjust blade distance, pneumatic lock. Improve whole machine degree of automation, easy
to operate and high precision, save time and labor to adjust.
3.Slitting Part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
4.Scoring Part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
5.Grinding Part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work efficiency.
6.Adopt China famous brand or imported electric element, dependable performance
MAIN PARAMETER
| Model | 2000 | 2500 |
| Machine dimension (mm) | 2800×2200×1550 | 3300×2200×1550 |
| Power (KW) | 5.5 | 5.5 |
| Max slitting width (mm) | 1800 | 2300 |
| Max feed length (mm) | 2000 | |
| Min slitting width (mm) | 140 | |
| Min slitting length (mm) | 320 | |
| Min scoring width (mm) | 55 | |
| Scoring height (mm) | 0-10 | |
| Blade (mm) | φ200×122×1.2 | |
| Blade & Scoring Composed Type | 4 blade /6Scoring 5 Blades /8 Scoring |
|
