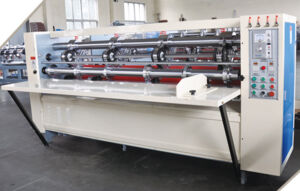

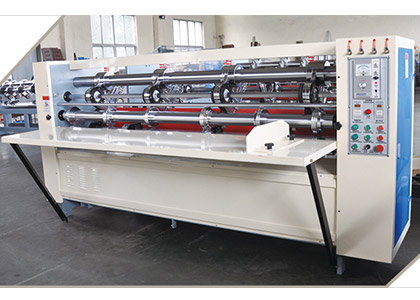

BFY-DZ Series thin blade slitter scorer machine
（manual adjust blade/manual adjust scorer）
MAIN FUNCTION
1.Adopt front-scoring feeding, back double rubber roll leading paper, paperboard running steady.
2.Slitting Part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and nonburr.
3.Scoring Part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
4.Grinding Part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working,improve work effi ciency.
5. Adopt China famous brand or imported electric element, dependable performance.
MAIN PARAMETER
| Model | 2000 | 2500 | 3000 |
| Machine dimension (mm) | 2600×750×1400 | 3200×750×1400 | 3700×800×1400 |
| Power (KW) | 4 | 4 | 5.5 |
| Max slitting width (mm) | 1800 | 2300 | 2800 |
| Min slitting width (mm) | 140 | 140 | |
| Min slitting length (mm) | 435 | 460 | |
| Min scoring width (mm) | 55 | 55 | |
| Scoring height (mm) | 0-10 | 0-12 | |
| Blade (mm) | φ200×122×1.2 | φ200×122×1.2 | |
| Blade & Scoring Composed Type | Four blade Six Scoring/ Five Blades Eight scoring | ||
| Scoring wheel（mm） | φ156 | φ185 | |
| Scoring roller（mm） | φ86 | φ110 | |
